About Camvex DVR's
Our DVR's are built to last longer then other DVR's. We use 'Enterprise AV Surveillance' hard disk drives for video storage. Surveillance drives are more expensive then normal hardrives, they offer more guaranteed operating hours and employ advanced spin down algorithms and use multiple read/write heads to minimize the load the of continuous recording. For our Ultima series we also employ multiple cooling features to improve air flow around hard disk drives to reduce heat, which is a big killer of drives. Using SSD drives with embedded Operating Systems also adds to the reliability of a DVR unit, solid state devices have no moving parts. Most of our DVR's now have the ability to stream live video footage to your iPhone™ or Windows Mobile™ 6 phones.
Omega DVR range
This is our latest range of DVR's, which offer a free app to view live video on your iPhone. The local DVR user interface on these units is the best we have seen, with intuitive point and click mouse operation that eliminates the need for a keyboard. The units also include 2x USB 2.0 ports, HDMI port, VGA Port other features include simultaneous, continuous and motion recording, choice of CBR or VBR. The Omega can be connected to a network.
Download brochure Omega 1000 Series(1.1 Mb), or Omega 1500 (1Mb)

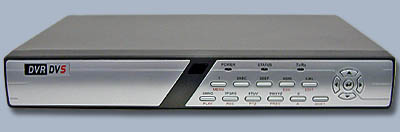

Maxima Eco DVR range
One of the most costly components of any CCTV solution is the installation of a cable infrastructure.
These costs can be incurred repeatedly if additional cameras or controls are required due to
your changing requirements.
The Maxima Eco can provide the solution to this problem. By installing either four 4 or 8
channel units near a Local Area Network (LAN) connection, you can have LAN access to any
number of remote units and cameras.
Eco units and cameras can be viewed and reviewed from any location that has a connection to
your LAN. Business owners and managers can “look in” on the units from any location including,
local, interstate, home or even overseas.
Download brochure 4 CH Eco brochure (1Mb) or 8 CH Eco brochure(1Mb)

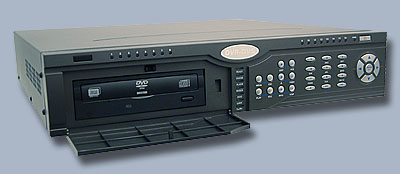

Maxima MRS Series
This is our highly customizable embedded DVR that can have up to a massive 8 Terabytes of on-board storage, The MRS series also allows you to view live video streams on your iPhone or Windows Mobile phone. It also has a removable hard drive option that allows the drive to be pulled out of the unit for off-site review. This feature is often prefered by law enforcement personnel. The unit can also be operated remotely using the Freedom DVR surveillance application and a static public IP address.
Download brochure : Maxima MRS brochure(1Mb)

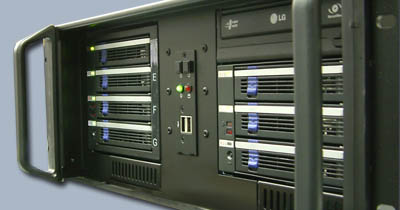

Ultima DVR Range
The Ultima a heavy-duty DVR series, that offer up to 6 Terabytes of storage and 24 channels. It uses an embedded Operating System on DOM
(Disk On Module) or optionally on SSD (Solid State Disk) providing greater system stability. Only video/audio data is
recorded to HDD (Hard Disk Drive). Ultima DVR’s utilise H.264 (MPEG-4 part 10) hardware compression with selectable recording frame rates up to real time
(25ips) per channel. Download brochure: Ultima brochure(1Mb)
Sony NSR NVR Range
The demand for surveillance systems is growing, and the adoption of IP as a transport mechanism for video is
ever increasing. Sony recognized this trend early on, and has been focused on developing products and
solutions aligned with this trend. Now, Sony is pleased to announce the introduction of the NSR-1000 Series of
recording servers.
The key concept of the NSR-1000 Series is a hybrid capability – with an open-platform design, these recording
servers support both legacy analogue and current IP cameras, and are easy to setup and operate.
Download brochure : Sony NSR Brochure (1Mb)

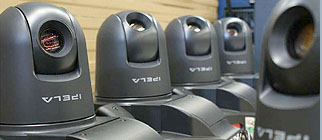

Custom built Sony NVR Server
This is a custom built NVR server built to your needs and managed by the Sony Real Shot Manager Advanced© software. Which is designed to manage surveillance footage. This Hybrid unit supports current analogue CCTV cameras and future IP and wide aspect ratio cameras, the software also incorporates the latest IPELA intelligent motion detection (25Mb). Sony Solutions offer the latest in IP CCTV surveillance technology for medium size enterprise businesses.
DVR Maintenance and Settings
The DVR is one the most important pieces of equipment in a CCTV surveillance system, as it records and manages your video footage. It is often working 24 hours a day 7 days a week. So the importance of maintaining your DVR cannot be underestimated.
Camvex recommends the following to help keep your DVR running as long as possible.
- Keep the DVR in a cool dust free secure cabinet or room
- A UPS should be connected to the DVR
- Replace hard disk drives before they reach EOL (End of Life)
- The DVR should only be used as a DVR and not for other purposes
- Health diagnostics should be run regularly
Daily Maintenance Check list
- Ensure there is movement in each camera and that the clock on the screen in advancing
- Ensure DVR's are left in single screen sequence mode when not in use to prevent image burn
Weekly Maintenance Check list
- As above, plus perform playback from at least 1 period of the previous week.
Monthly Maintenance Check list
- As above, plus perform a file back-up and create a CD
6 Monthly Maintenance Check list
- Replace filters & perform full parameter and diagnostic check ( Health Diagnostics ) These checks should be performed by a qualified CCTV technician.
- Any questions please contact our service department on 1800 336 156
There are a number of settings in a DVR that determine the quality of your recorded footage. Below is a list of DVR settings that have an effect on video quality.
- Recording resolution i.e. CIF, 2CIF DCIF etc...
- Frame rate setting
- Bit rate value and type (VBR or CBR)
- Image quality setting
- Quality of the H.264 encoding algorithm
It should be noted that there is often a compromise between resolution, frame-rate and bit-rate to minimize the cost of storage, because the higher the image quality settings, the more hard disk drive capacity is required.
